What is the required height for glass balustrades in NSW?

Glass balustrades must be at least 1000 mm high under AS1288-2021. Our panels are 970 mm plus spigots (~60 mm), making them fully compliant.

Do glass balustrades require a top rail?

Yes. A top rail is required for installations above ground floor to protect glass edges and comply with regulations.

What material are balustrade spigots made from?

We supply Duplex 2205 stainless steel spigots, offering double the corrosion resistance of 316L and fully compliant with AS1288-2021.

Glass Balustrade

Frameless Glass Balustrade Sydney & Brisbane – 12mm Panels, Spigots & Top Rails

1. Choose panel sizes

Panel available from 200–2000 mm widths in 50 mm increments, height 970 mm. 12 mm A-grade toughened glass, compliant with AS/NZS 2208. Custom sizes available.

2. Glass spigot selection

• 2x spigots per panel; panels over 1800 mm require 3x spigots.

• Made from Duplex 2205 stainless steel, offering double the corrosion resistance of 316L.

• Fully compliant with AS1288-2021, AS1170.1 and AS1926.1-2012. NATA accredited.

2205 stainless steel glass balustrade spigots Sydney

3. Balustrade Top Rail

Required if not installed on the ground floor. 316L stainless steel slotted rail (25×21mm, 5.8m length) protects glass edges and improves safety.

Accessories: brackets, end caps, corner joiners, straight joiners, adjustable joiners, and inserts.

Glass balustrade stainless steel top rail Sydney

4. Other Materials

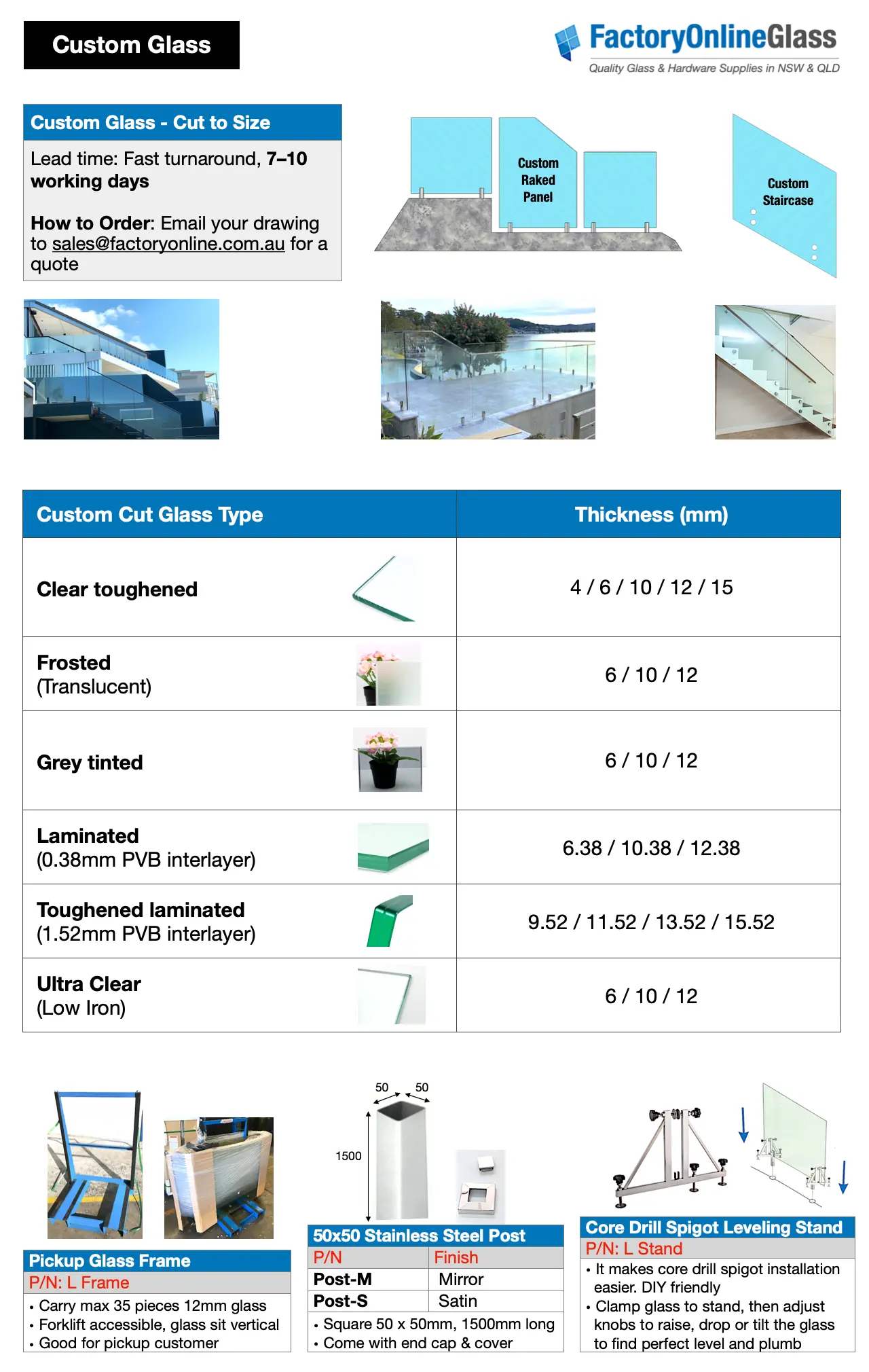

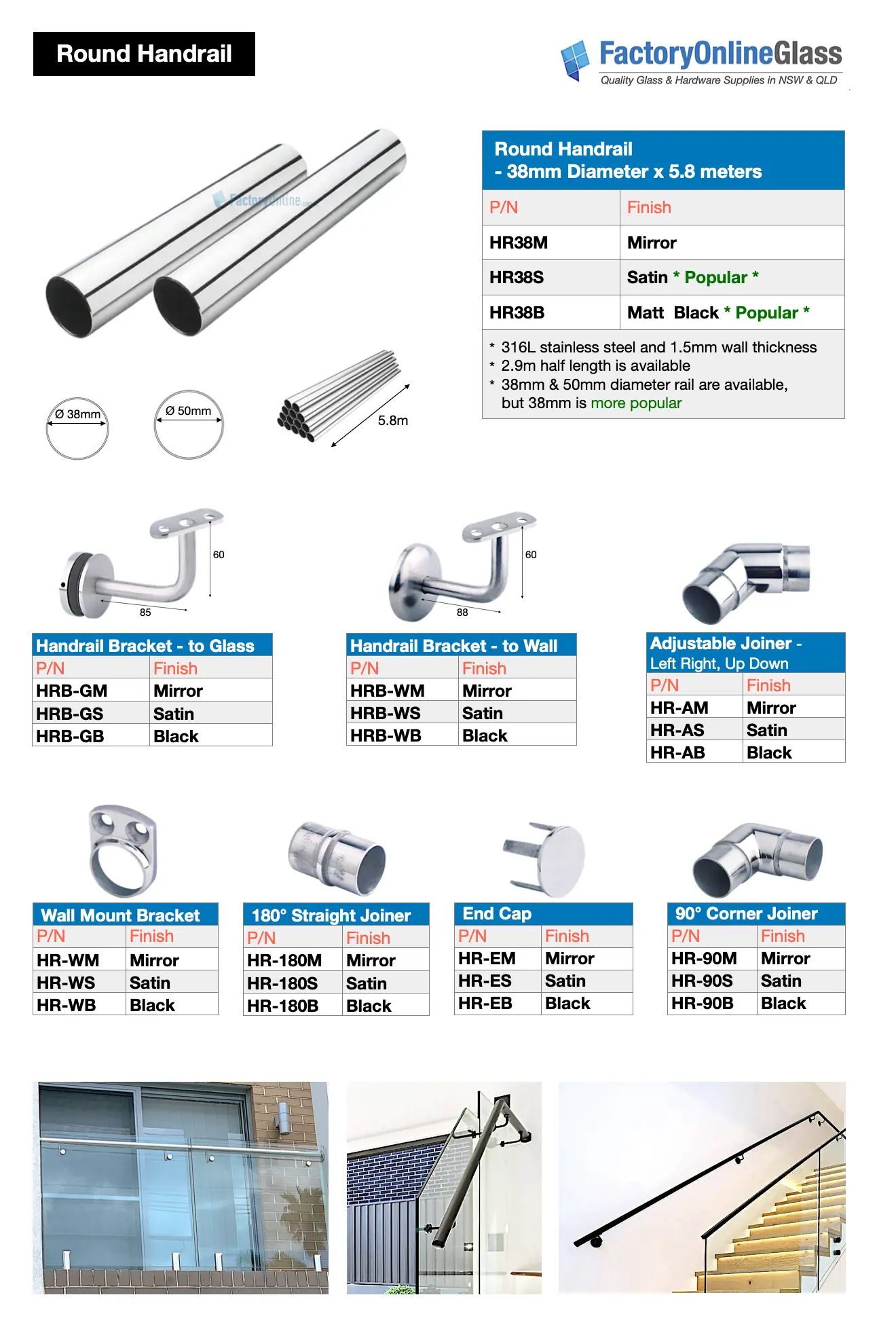

We also supply custom cut raked panels, stainless steel posts, handrails and glass transport frames. Email drawings to sales@factoryonline.com.au for a fast quote.
