Orion Soft Close Hinge Set - 180M (a Pair)

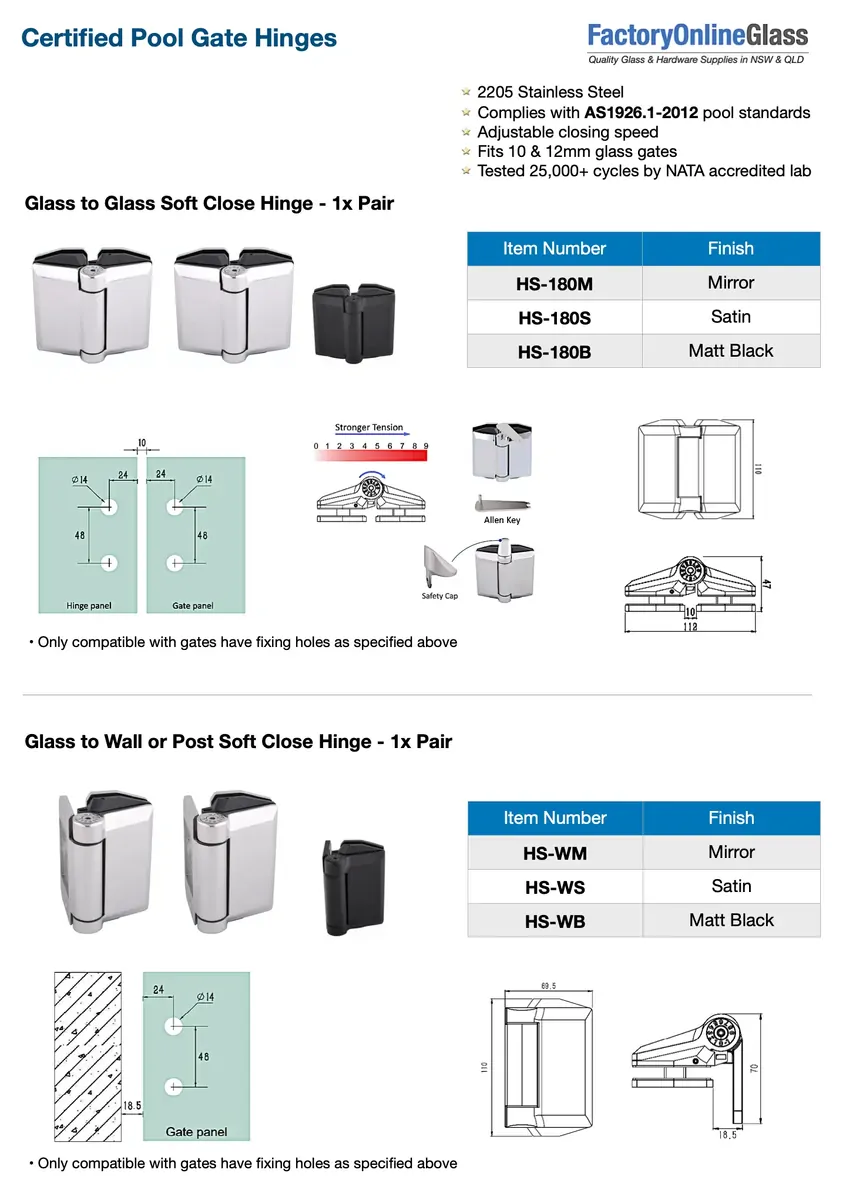

Hinge Specifications

• Safety pool hinges, compliant with AS1926.1-2012 Swimming Pool Safety Standard
• Proven and reliable soft-close hinge with adjustable closing speed
• Suits 10 mm or 12 mm glass. Easy to install and adjust
• Full stainless-steel stylish finish, made from 2205 high-grade duplex stainless steel
• Patented and tested 25,000+ cycles by NATA lab
• Premium quality, 2-year replacement warranty
• Local stock ready for quick pickup or delivery in Sydney & Brisbane

*** Hinges are designed for our glass gate holes. Please purchase together with our gate & hinge panel, as they will not fit glass panels from other sellers.

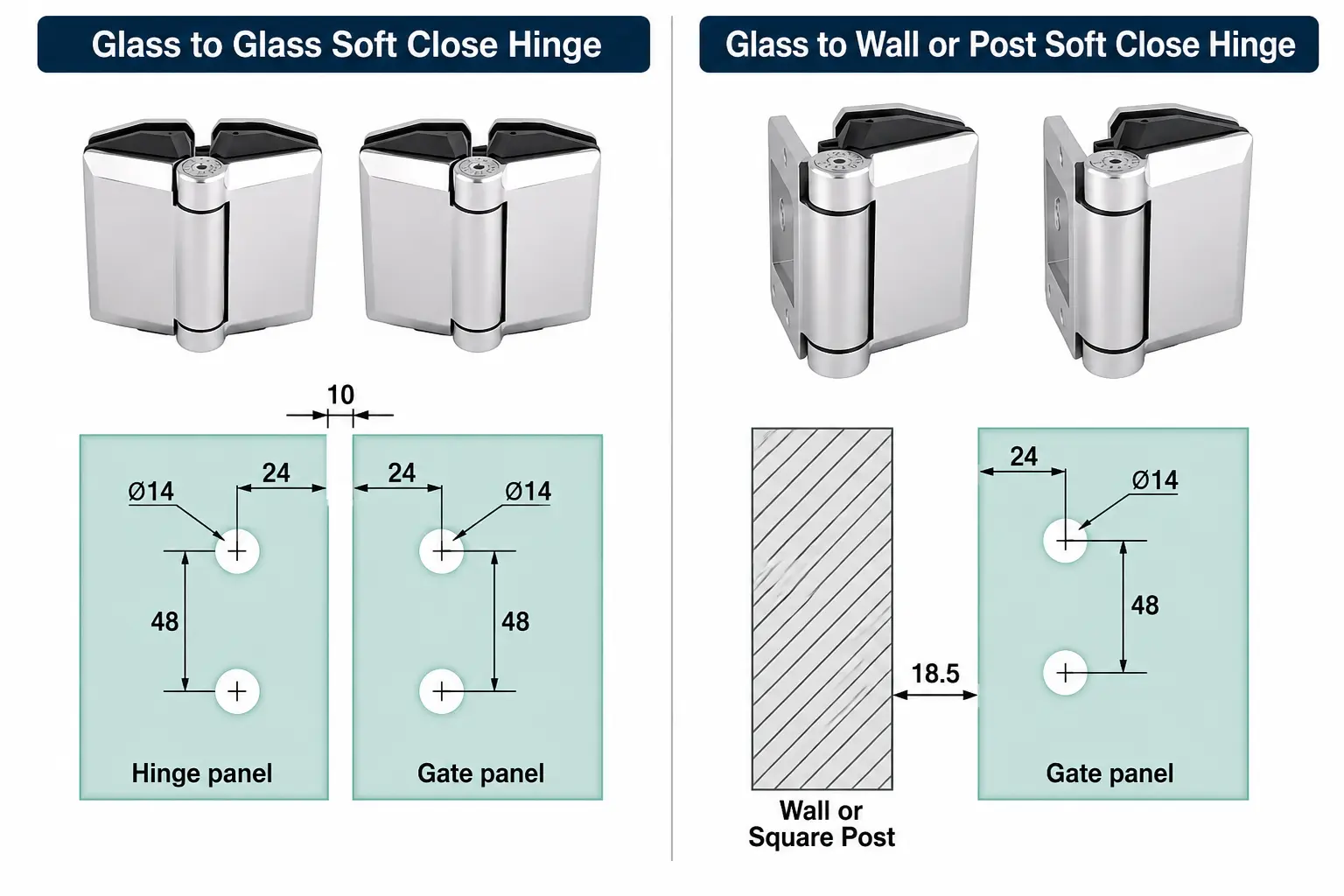

If you are replacing hinges and latch on an existing gate, ensure the hinge holes are 48 mm apart and 24 mm from the edge, and the latch holes are 42 mm apart and 20 mm from the edge. All holes must be Ø14 mm in diameter.
