Face Mount Glass Balustrade - Spigot Fixed Supply in Sydney

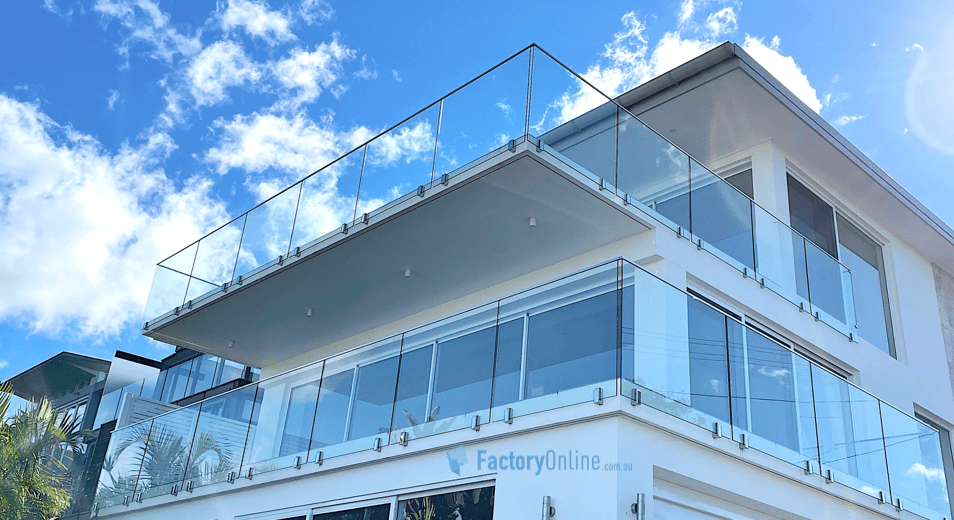

face side mount glass balustrade with smarter spigot

___________________________________________________

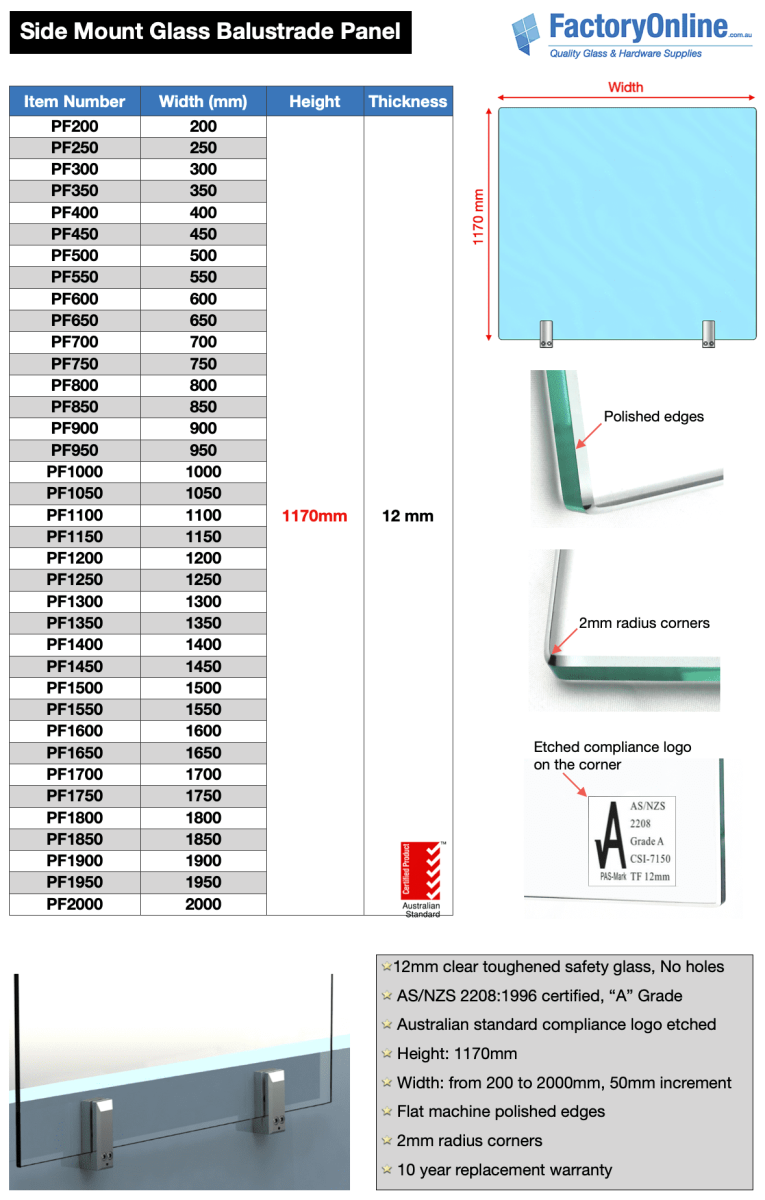

face mount glass balustrade panel size

___________________________________________________

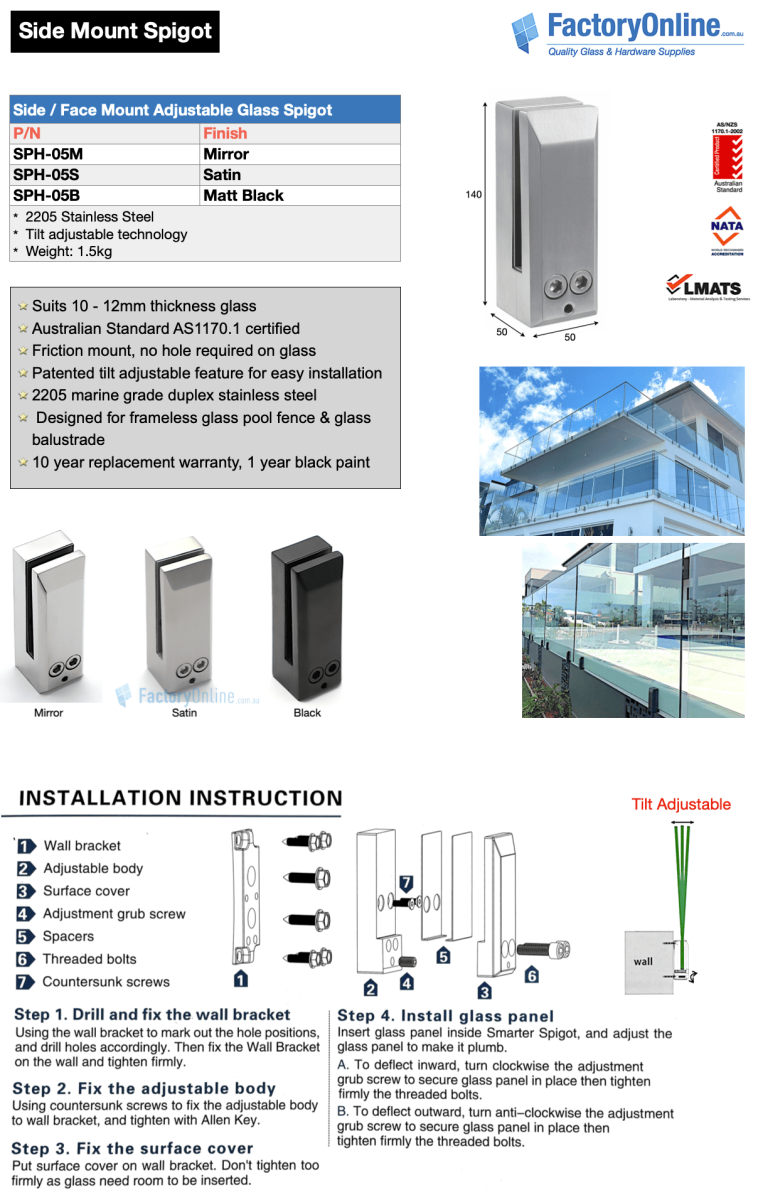

Smarter Spigot face mount glass balustrade

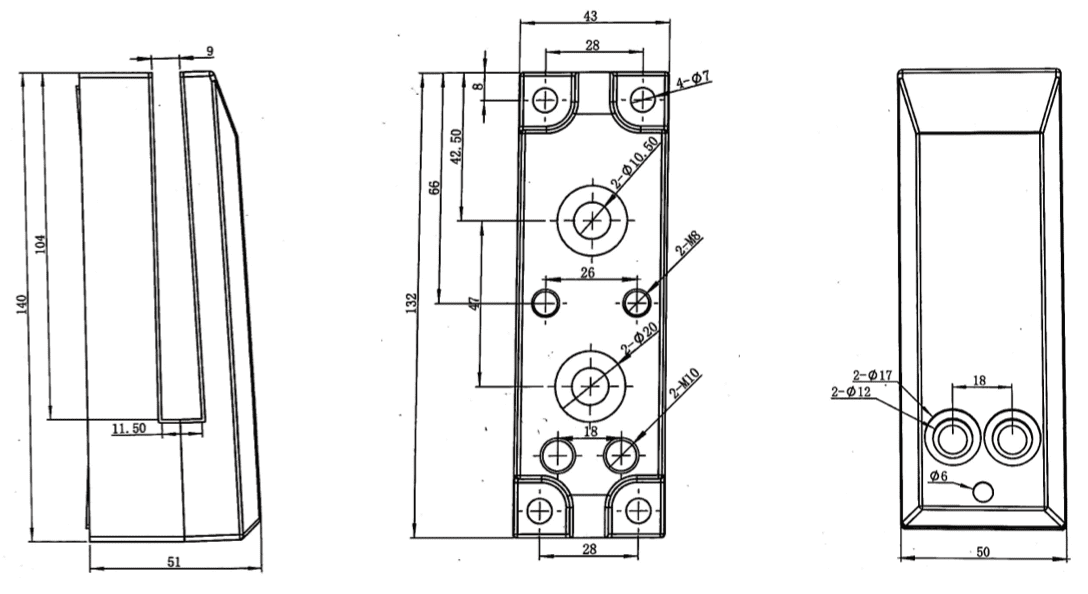

face mount smarter spigots dimensions



___________________________________________________

top rail handrail capping for face mount glass balustrade



___________________________________________________

Glass Panel Specification:

  • Material: Clear toughened safety glass panel
  • Thickness: 12mm
  • Dimensions: Height: 1170mm, Width: 200 ~ 2000mm ( increment: 50mm)
  • Edge Finish: Flat polished edge,
  • Corner Finish: smooth 2mm radius in x4 corners
  • Australian Standard: AS/NZS 2208:1996
  • Warranty: 10-year replacement


Stainless Steel Spigot Specification:

  • Heavy Duty solid stainless steel spigot suitable for both pool fencing & balustrade glass panel.
  • Engineered in Australia with full NATA accreditation to meet Australian Standards AS1170.1.
  • Material: 2205 Duplex Stainless Steel (Grade sequence 2205 > 316L > 316 > 304 stainless steel)
  • 2205 Duplex stainless steel is stronger and has better corrosion resistance than 316L stainless steel.
  • Friction fit, no hole is required on the glass panel. Glass is firmly secured by tightening 2 grub screws.
  • Patented product. New design, with handy "Tilt-Adjustable" Technology, makes installation easier and faster.
  • Mirror (polished), Satin (brushed) & Matt Black surface finish available.
  • Come with stainless steel cover plate.
  • 10 year replacement warranty, 1 year black paint.

Features:

  • Side mount/face mount glass balustrade is the most popular fencing solution in recent years. It provides unobstructed views.
  • Fully accredited to Australian Standards AS/NZS 2208 and with certificate. Every glass panel has an etched Compliance Logo for your peace of mind.
  • 2mm radius in each corner and polished edges for additional safety.
___________________________________________________




get a free glass balustrade pool fence quote

T:  02 8005 1599

E: sales@factoryonline.com.au

Showroom: 221 Parramatta Road, Auburn, NSW 2144 (Mon - Fri: 8:30am - 4:30pm)
(Opposite of Harvey Norman Auburn)

If you don't know how to calculate or design properly, simply send the balcony, veranda or deck dimensions to our email (sales@factoryonline.com.au) or visit our showroom. We will help you design and quote.
